aniLight 3

aniLight 3 is a multifunctional light miniature activated by body motion in the dark, powered by rechargable battery, ideal for your cabinet, stairway, night bathroom trips,etc.

aniLight 3 User's Manual (v3.0.0)

aniLight 3 Mesh Light Switch User's Manual (v3.0.0)

aniLight

aniLight is a multifunctional light miniature activated by body motion in the dark, powered by rechargable battery, Bluetooth enabled, ideal for your cabinet, stairway, night bathroom trips,etc.

Android app

The Android App named aniControl (v1.0.1) which provides aniLight firmware (v1.2) update has already been published on Google Play Store. Search "anicontrol" to find that App.

Firmware v1.2 changes from original v1.1:

• Fixed the battery recharging and its LED indicator bug. The battery will be recharged properly now even when the unit is powered off.
• Modified the button operations for Setting change much easier (check below for the details).
• Other miscellaneous small bug fixes and optimizations.

iOS app

The iOS App named aniControl (v1.0.1) which provides aniLight firmware (v1.2) update has already been published on Apple App store. Search "aniControl" to find that App.

Check this Youtube video for a brief demonstration.

Unlike Android app, iOS app does not provide the device name change feature due to Apple SDK limitations.

Web app

A web app to control aniLight (beta version) is available for your preview:

https://www.anifree.com/anilight/webapp

The features are limited due to Bluetooth for Web (platform) is still in its preview state, such as firmware update, device name change, etc. are not supported.

When accessing the above web page, whether from your phone, tablet or Bluetooth supported personal computer, we highly recommend using the Chrome browser which has better Bluetooth for Web support.

When using iPhone or iPad, since any popular web browser does not support Bluetooth for Web yet, please download the Bluefy browser from Apple store, and use it to access the above webpage instead.

For aniLight with firmware V1.2 or above (if you have performed firmware update):

aniLight User's Manual (v1.0.3)

Button operations for Settings are changed from new firmware V1.2:

There are 3 settings:

• Brightness: Selected LEDs (RGB color or White) change their brightness.
• Light color: LEDs change color (Warm white -> Natural white -> Cool white -> RGB white -> RGB color -> Warm white).
• Delay time (3 seconds ~ 5 minutes, default 15 seconds): The green light runs clockwise in seconds counting the delay time.

When change Settings:

Start from the auto-sensing mode while the lights are not on.
Change one setting at a time (it returns to auto-sensing mode automatically after one setting is saved).

• Single press SET button to change Brightness.
• Double press SET button to change Color.
• Triple press SET button to change Delay Time.

When the desired Setting value is reached, press SET button again to save and exit Settings.

To cancel and exit Settings without any change, press PWR button within Settings mode.

For original aniLight with firmware V1.1 (if you have not performed any firmware update):

aniLight User's Manual (v1.0.2)

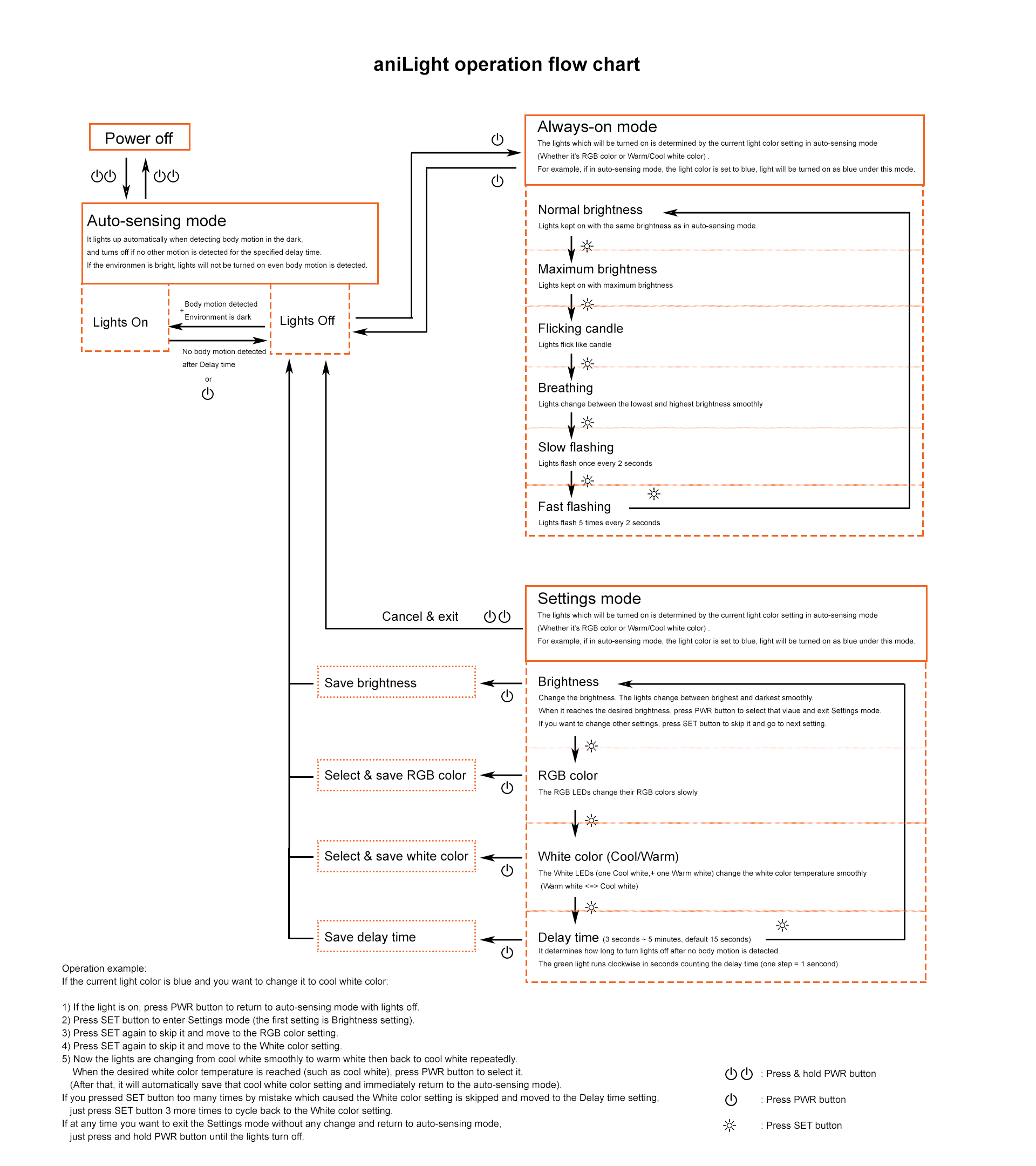

aniLight Operation Flow Chat (v1.0.0)
